Marble fireplace surrounds are decorative architectural components rather than direct combustion surfaces. The marble normally remains below 60°C during regular fireplace operation when installed according to manufacturer specifications. Material selection should focus on dimensional stability, vein consistency, machining accuracy, and packaging protection rather than extreme heat resistance alone.
For residential and hospitality projects, the most common production workflow includes CAD drawing review, 1:1 shop drawings, CNC precision cutting, dry-lay inspection, trial assembly, and reinforced export packaging before shipment.
ASTM-Based Material Selection: Heat Resistance and Mechanical Properties
The fireplace surround is exposed mainly to radiant heat instead of direct flame. Different natural stones perform differently under long-term temperature fluctuation.
| Material | Continuous Service Temperature* | Mohs Hardness | Water Absorption | Typical Application |
|---|---|---|---|---|
| White Marble | 150-200°C | 3-4 | <0.50% | Decorative fireplace surrounds |
| Calacatta Marble | 150-200°C | 3-4 | <0.50% | Luxury living rooms |
| Arabescato Marble | 150-200°C | 3-4 | <0.50% | Book-matched fireplaces |
| Travertine | 120-180°C | 3-4 | 0.6-1.5% | Minimalist interiors |
| Quartzite | 250-300°C | 7 | <0.20% | Contemporary fireplace surrounds |
| Granite | 300-400°C | 6-7 | <0.30% | Commercial projects |

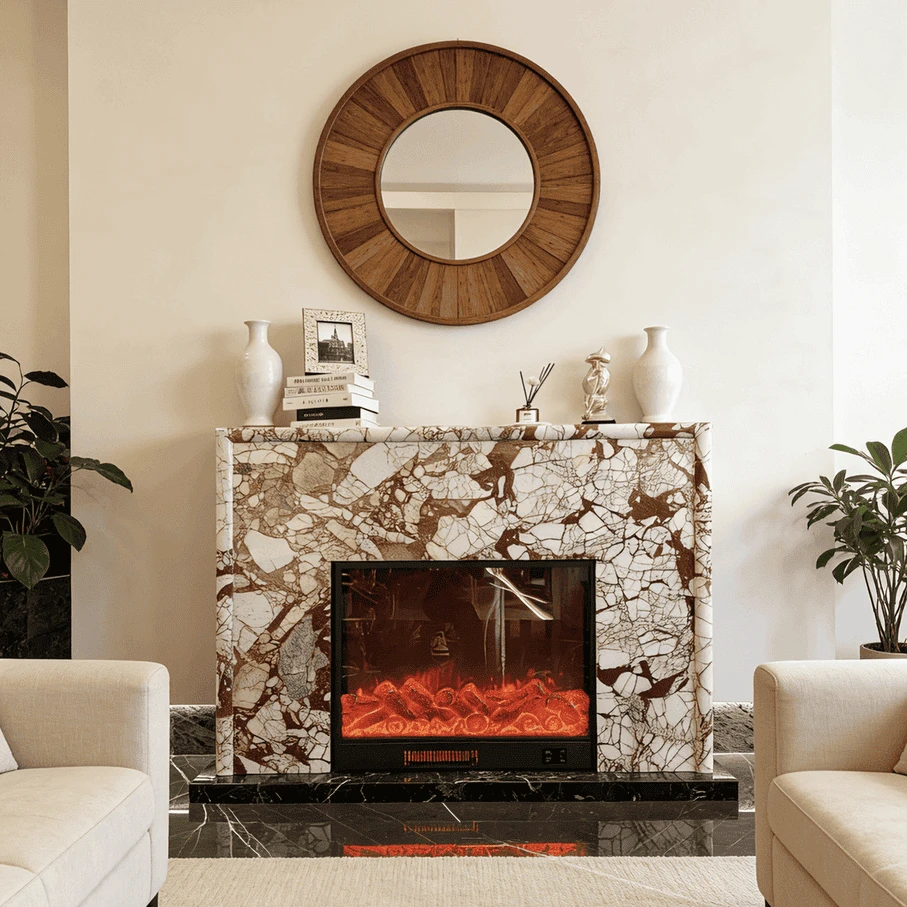

Marble fireplace surround
*Typical engineering reference values for decorative surround applications. The firebox should always follow the fireplace manufacturer's clearance specifications.
Material selection should also consider:
ASTM C97 Water Absorption
ASTM C170 Compressive Strength
ASTM C99 Flexural Strength
ASTM C241 Abrasion Resistance
Calibrated Thickness (±0.5-1.0 mm)
Vein direction before fabrication
Minimalist vs European Carved Marble Fireplace Designs
Fireplace style determines fabrication complexity, machining time, and installation sequence.
Minimalist Fireplace Surround
Common characteristics:
- Straight CNC-cut panels
- Mitred corners
- Hidden joints
- Large-format slabs
- Honed or polished finish
- Thickness 20-40 mm
- Preferred materials:
- Panda White Marble
- Arabescato Marble
- White Onyx
- Bulgari Grey Quartzite
Installation tolerance generally remains within ±2 mm after wall preparation.
European Carved Fireplace
Common characteristics:
- Hand-carved mouldings
- Decorative capitals
- Curved profiles
- Relief carving
- Multi-piece assembly
- Classical proportions
- Additional machining normally includes:
- 5-axis CNC rough carving
- Hand finishing
- Profile polishing
- Trial assembly before packing
Production time is generally longer due to carving complexity.
Design Comparison
| Feature | Minimalist Style | European Style |
|---|---|---|
| Fabrication | CNC Precision Cutting | CNC + Hand Carving |
| Surface | Flat Panels | Decorative Relief |
| Joint Visibility | Low | Medium |
| Installation | Faster | More Components |
| Preferred Finish | Honed / Polished | Polished |
| Suitable Projects | Villas, Apartments | Hotels, Luxury Residences |
Need accurate fireplace fabrication before construction begins?
Request a 1:1 Fireplace Shop Drawing
1:1 Shop Drawing and Prototype Development
Custom fireplace production begins with engineering verification
Engineers verify:
Overall dimensions
Firebox opening
Mantel depth
Installation clearance
Wall conditions
Each component receives:
Part number
Thickness
Joint position
Edge profile
CNC machining path
For complex fireplace surrounds, exploded drawings are prepared before fabrication.
Factory-Assembled Marble Fireplace Surround vs On-Site Assembly
Most marble fireplace surrounds available in the market are delivered as individual stone components. Installation is completed on-site by local contractors, who assemble the mantel, legs, header, and base before applying structural adhesive.
For residential projects, luxury villas, and high-end interior developments, a factory-assembled fireplace offers higher dimensional accuracy and significantly reduces installation time.
Comparison
| Item | Factory-Assembled Fireplace | Traditional On-Site Assembly |
|---|---|---|
| Base Structure | Integrated Steel Frame | Timber or Site-built Base |
| Installation | Position and Fix | Multi-step Assembly |
| Joint Accuracy | Factory Controlled | Depends on Installer |
| Adhesive Exposure | Minimal | Multiple Visible Bonding Areas |
| Installation Time | 1-2 Hours | 1-2 Days |
| Rework Risk | Low | Higher |
| Surface Finish | Factory Inspected | Site Dependent |
Instead of supplying loose stone pieces only, the fireplace can be fully assembled in the factory using an internal welded steel frame. The complete unit is inspected before packing and delivered as a finished architectural component.
This production method is similar to installing finished furniture rather than assembling individual decorative parts on-site.
Engineering Advantages
- Higher finishing quality
Factory-controlled assembly allows tighter joint alignment and more consistent polishing across connected components.
- Reduced installation errors
The integrated steel base eliminates the need to coordinate marble panels with a separate timber structure, reducing dimensional mismatch during installation.
- Lower long-term maintenance
Because fewer visible joints require adhesive on site, the risk of yellowing, adhesive shrinkage, or joint separation over time is reduced.
- Lower installation cost
Installers mainly position, anchor, and level the completed fireplace instead of assembling every individual component. Labor requirements are lower, particularly for overseas residential projects.
- Improved transportation management
The steel frame increases structural stability during handling and reduces movement between marble components inside the crate.
Export Packaging and Ocean Shipping Protection
Large fireplace surrounds consist of multiple precision-cut components that require controlled packing.
Standard export procedure includes:
- Individual foam protection
- PE protective film
- Corner guards
- Component numbering
- Moisture-resistant wrapping
- Heat-treated wooden crates
- Internal steel reinforcement
- Shock-absorbing blocking
Each crate includes an installation reference matching production drawings.
For oversized fireplace mantels, separate packing reduces handling stress during loading and unloading.
Typical packaging inspection covers:
| Inspection Item | Standard |
|---|---|
| Edge Protection | Foam + Corner Guard |
| Surface Protection | PE Film |
| Moisture Barrier | Waterproof Wrapping |
| Wooden Crate | ISPM-15 Heat Treated |
| Component Identification | Numbered Labels |
| Trial Assembly | Completed Before Packing |
This packaging method helps reduce transit damage during long-distance ocean freight.
Planning an overseas fireplace installation with multiple stone components?
Get Fireplace Packing & Shipping Solution
Quality Control from Slab to Finished Fireplace
Every fireplace surround passes multiple inspection stages.
Raw Material Inspection
Vein consistency
Thickness calibration
Crack inspection
Surface quality
CNC Processing
Dimensional tolerance ±0.5-1.0 mm
Edge profile inspection
Carving verification
Final Inspection
Dry-lay confirmation
Joint accuracy
Surface polishing
Packaging verification
Large hospitality projects may also require batch consistency records for repeat production.
Common Marble Types for Fireplace Surround Projects
| Stone | Visual Feature | Finish Options | Typical Interior Style |
|---|---|---|---|
| Panda White Marble | Bold black veins | Polished | Modern Luxury |
| Arabescato Marble | Flowing grey veins | Polished, Honed | Contemporary |
| Calacatta Gold Marble | White with gold veining | Polished | Luxury Villas |
| Beige Travertine | Linear texture | Honed | Minimalist |
| White Onyx | Backlit effect | Polished | Feature Fireplace |
| Bulgari Grey Quartzite | Grey mineral movement | Leathered, Honed | Modern Interiors |
FAQ
Can a marble fireplace surround be installed around both gas and electric fireplaces?
Yes. Marble surrounds are commonly used with gas, electric, and wood-burning fireplaces when the installation follows the fireplace manufacturer's clearance requirements and local building codes.
How is vein continuity maintained across large marble fireplace surrounds?
Large slabs are selected before fabrication. Book-matched layouts, digital slab mapping, and dry-lay inspection ensure that vein direction continues naturally across mantels, legs, and header panels.
What information is required before producing a custom marble fireplace surround?
Provide CAD drawings or architectural dimensions, firebox model, installation method, preferred stone, finish, edge profile, and project quantity. Engineering drawings are prepared before CNC production begins.
Conclusion
For custom marble fireplace projects, machining accuracy, slab selection, and packaging quality have a greater impact on installation efficiency than appearance alone. A complete workflow-including CAD verification, 1:1 shop drawings, dry-lay service, CNC precision cutting, and reinforced export packaging-helps reduce installation adjustments while maintaining consistent stone quality across residential, hospitality, and commercial projects.
Guanmay Stone provides custom fabrication for marble fireplace surrounds, fireplace mantels, and integrated steel-frame fireplace units for residential, hospitality, and commercial developments. Share your CAD drawings, fireplace dimensions, or reference images with our engineering team. We will review the design, recommend suitable stone slabs, prepare fabrication drawings, and provide a factory quotation with packaging and shipping solutions.
